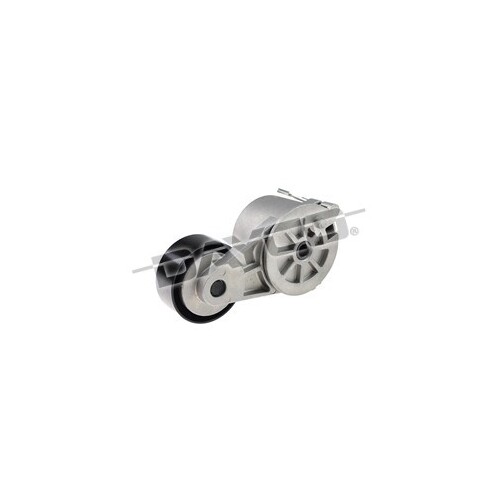

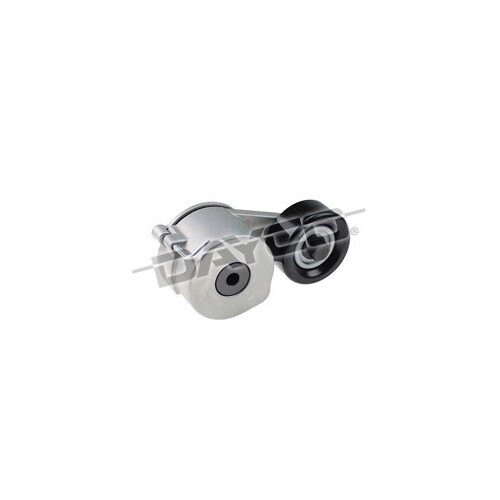

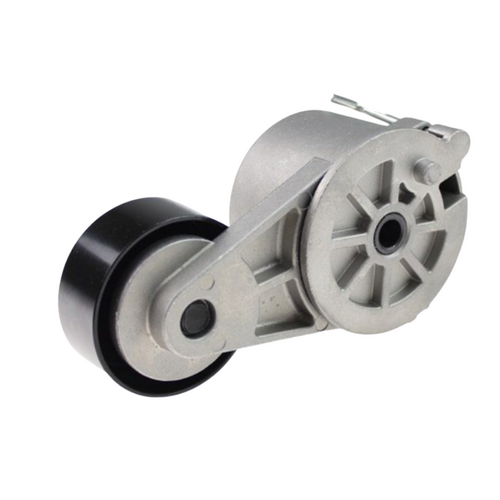

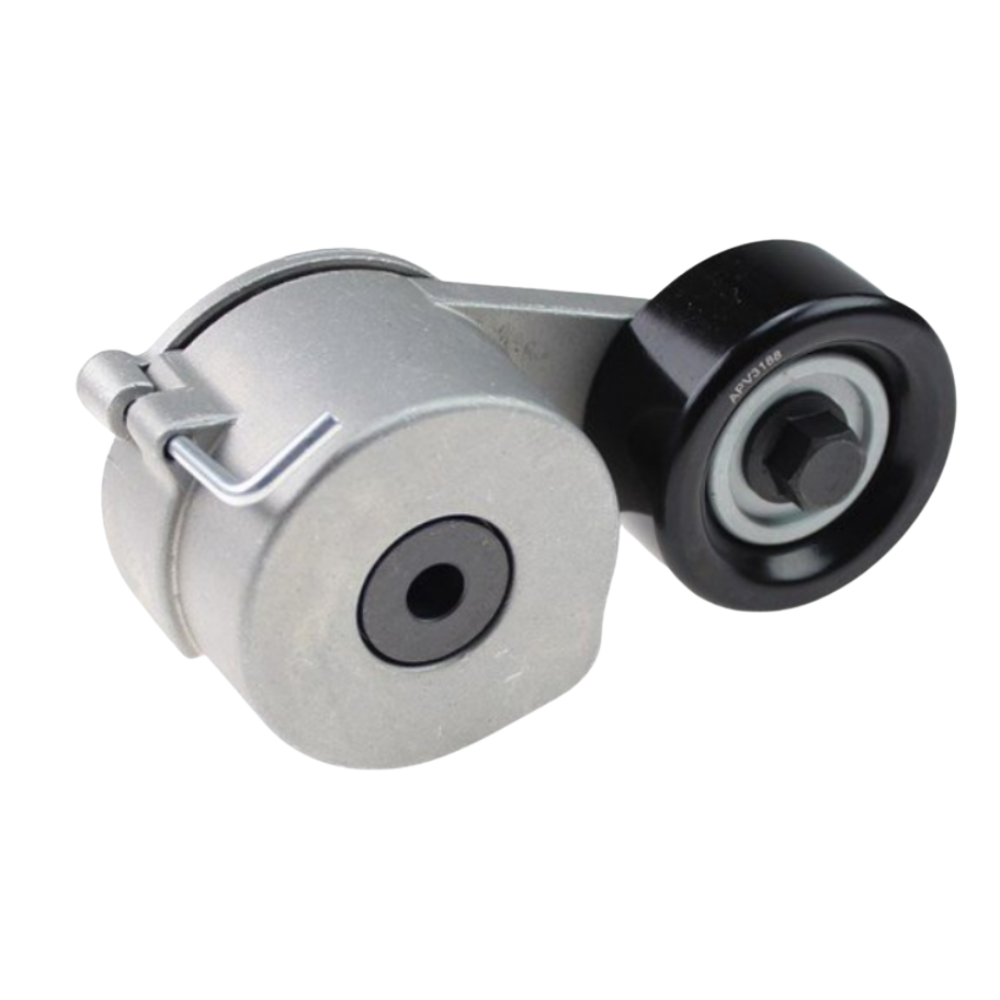

Dayco Automatic Belt Tensioner APV3188
SKU: APV3188
Dayco Automatic Belt Tensioner — APV3188
The Dayco APV3188 is an engine automatic belt tensioner, designed to maintain constant tension on serpentine belt drives.
A serpentine belt drive uses a single belt to power most, if not all, of the engine's accessories. To maintain the proper tension throughout that drive, an automatic spring-loaded tensioner is built into the drive system geometry.
Why the tension matters
Dayco's Automatic Belt Tensioner features a patented flat spring design, engineered to provide less variation in tension across the operating range.
- Too much tension, as when a new belt is installed, risks premature accessory bearing failure. The flat spring design reduces that risk.
- Too little tension, as the belt begins to stretch and wear, causes belt squeal, slippage and poor accessory performance. The flat spring design lessens that risk too.
Construction
- A Teflon® strip wound within the spring resists abrasion, and the flat spring itself is coated to resist rust.
- A heavy-duty cast aluminium spring case resists cracking and fatigue.
- The heavy-duty cast aluminium arm offers additional strength and less distortion.
- An aluminium retainer ring locks the spring case and arm together and seals against corrosion.
- A thermoplastic rubber spring slot plug keeps out harmful contaminants.
- Lubricated nylon pivot tube and spring bushings promote quieter performance.
- A rubber O-ring seals against dust and grime.
- The zinc coated mounting bolt resists rust, and is concentric for a more even degree of constant tension.
- Where the application demands, a steel locator pin and a steel pivot tube provide additional strength for critical torque requirements.
- Available with either a glass-filled polymer or steel pulley with dust cover.
- Meets OEM performance standards.
- 2 years / 40,000 km warranty.
Check the part number against your vehicle before ordering.
| SKU | APV3188 |
| Model # | APV3188 |
| Barcode # | 8021787110708 |
| Brand | Dayco |
| Placement On Vehicle | Engine |
| Warranty | 2 Years/40,000km |
| Type | Tensioner Assembly |
| Manufacturer Part Number | APV3188 |
| Position On Vehicle | Engine |
| Contains Liquid | No |
- One of the largest Automotive companies in Australia.
- Dayco products are of the highest quality with OE spec parts
- Dayco supply a variety of parts to the aftermarket industry including belts, pulleys, thermostats, tensioners among others.
- See our other items for more Dayco products
Packaging: Manufacturers periodically update their packaging and labelling. You may receive the current or a previous design — the product, formulation and part number are unchanged.
Fitment (vehicle-specific products): Vehicle fitment is based on manufacturer and supplier catalogue data and is kept as accurate as possible, but vehicle catalogues are not perfect. Some models had more than one part fitted depending on build date, engine, or component size/variant, and parts on older vehicles may have been replaced with non-original or different-style components.
Before you buy, compare the product images with the part currently fitted to your vehicle — check shape, size, connectors and mounting points. If the part on your vehicle looks different, please contact us before purchasing. It is the buyer's responsibility to confirm the part suits their vehicle before purchasing.
Not sure? Message us with your vehicle's registration number and state (preferred), or full VIN/build details, and we'll do our best to confirm fitment before you buy.
Parts returned because they do not suit the vehicle, where the listing matches the manufacturer's catalogue, are treated as a change of mind and must be unused, uninstalled and in original packaging. Nothing in this notice affects your rights under the Australian Consumer Law.
