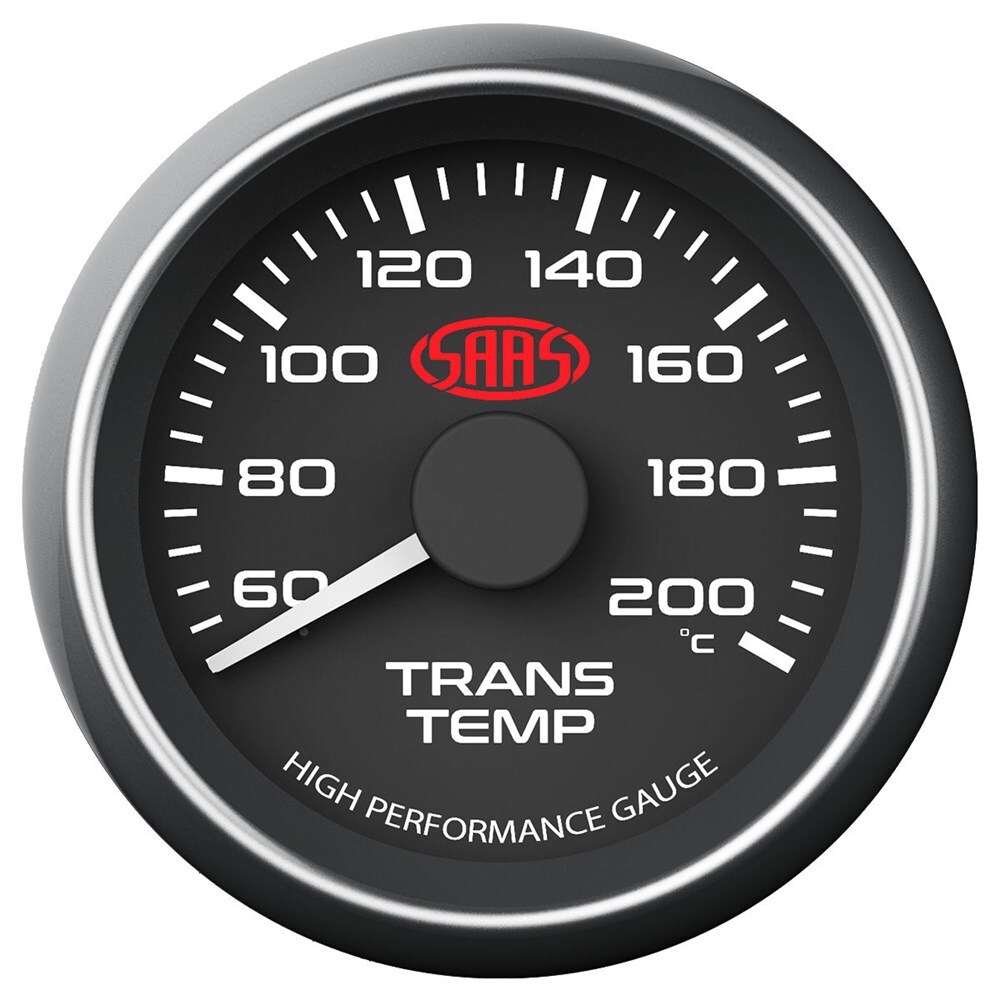

SAAS SG-TT52B Muscle Series - Trans Oil Temp Gauge 60°-200° 52mm Black

Whether you are looking to customize your interior or just want to keep an eye on how your vehicle is performing, SAAS Muscle Series gauges are the perfect solution, combining both function and style! Monitor your vehicle's automatic transmission oil temperature and be on the alert for possible overheating or other potential transmission issues. Ideal for towing applications where the additional load can produce higher transmission oil temperatures.

• What's Included:
  • Trans Oil Temp Gauge
  • Trans Oil Temperature Sender SGA-320051
  • Brass Adaptor Bush (3/8" NPT - 1/8"NPT)
  • Wiring Loom
  • Mounting Bracket and fittings


• FITMENT NOTES: The sender is most commonly mounted into the transmission oil pan using an in-sump adaptor. Alternatively mount into the HOT trans pipe using an inline T-Piece adaptor. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.














• Muscle Series Features: LED lighting with 4 colour options Micro switch for backlight changes Sender Thread - 1/8" NPT Temperature Range: 60°-200°
