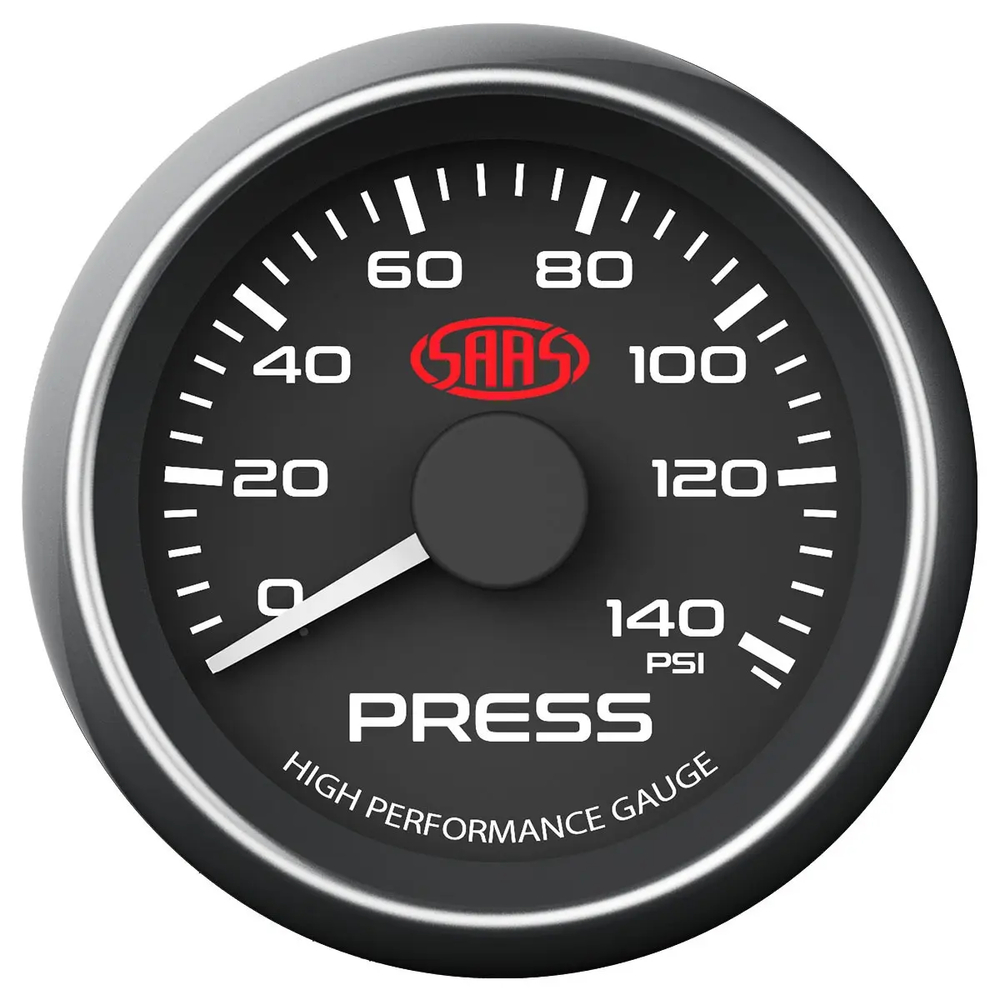

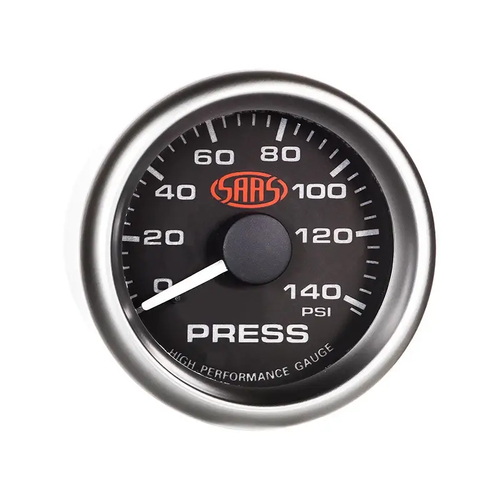

SAAS Muscle Series Oil Pressure Gauge — 52mm Black

Monitor one of your engine's most vital signs with the SAAS SG-OP52B Muscle Series I Oil Pressure Gauge. Designed to track pressure movement and add a bold look to your interior, this 52mm electronic gauge covers a 0–140 PSI range with multi-colour LED backlighting.

• 0–140 PSI pressure range for comprehensive engine oil pressure monitoring
• 52mm / 2" body diameter — suits standard 52mm gauge pods and mounts

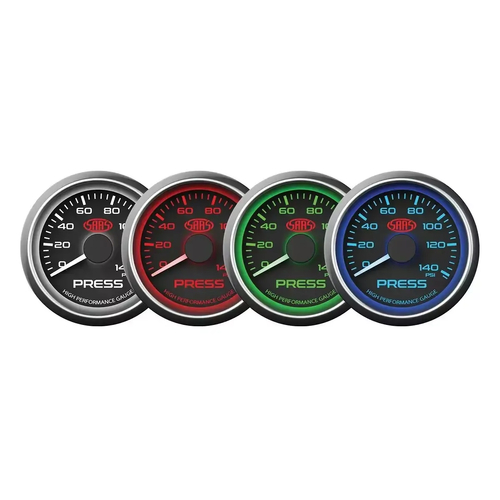

• Electronic type with LED lighting and 4 selectable backlight colour options
• Micro switch for easy backlight colour changes
• 12V operation
• Replacement spares available: mounting bracket (SG31005), oil pressure sender (SG31002)

What's Included:

• Oil Pressure Gauge
• Oil Pressure Sender (sender thread: 1/8" NPT)
• SGA-320051 Brass Adaptor Bush (3/8" NPT to 1/8" NPT)
• Wiring Loom
• Mounting Bracket and fittings

Fitment Notes:

• The sender is most commonly piggybacked off the OE oil pressure sender/switch using a brass T-adaptor. Alternatively, a SAAS oil filter sandwich plate can be used, providing up to 3 sender ports for accessories.
• If the standard sender wire is not long enough, splice in an additional length of wire with a gauge NO GREATER than the supplied loom wire. SAAS recommends wire of 20AWG or lighter. Use of heavier gauge wire or excessive wire length will impact resistance and distort pressure readings.

The SAAS SG-OP52B is part of the Muscle Series I gauge range, built to keep a close eye on engine health while complementing your vehicle's interior.
