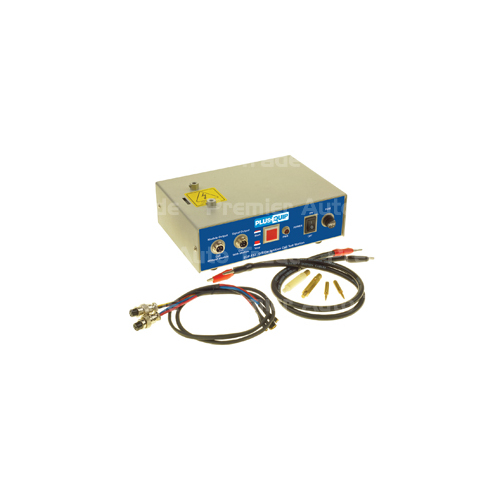

This off car ignition coil tester allows for a variety of ignition coil and ignition coil pack types to be operated off the vehicle to observe and determine the spark output condition.

This test unit is capable of testing:

• Standard ignition coils
• Ignition coils and coil packs with integrated module
• Waste spark coil packs
• Coil over plug individual units

Two output sockets on the front of the unit allow for a simulated MODULE OUTPUT for operating standard ignition coils and a SIGNAL OUTPUT for operating Ignition coils with integrated modules.

The sturdy, easily adjustable spark electrodes allow for a gap range to suit a variety of ignition coils and are easily visible during the testing process.

Can output two sets of drive signals at the same time; Has anti-interference ability, good stability, high load capacity;
Small, easy to use;
Output signal divided into “direct signal” and “within module” signal allows ignition coil with integrated module and without module to be tested; Discharging electrode spark gaps are easily adjustable.

WARNING: As with all ignition systems it is important to be cautious of the high voltage output during the testing procedure.

Dimensions
Length: 260 mm
Width: 180 mm
Height: 100 mm
Weight: 2.4kg

Power supply: 12V DC via vehicle battery or separate power supply. (Not included)

KIT INCLUDES:

• Ignition Coil Tester 12V
• High-Voltage Leads (Red x 1, Black x 1)
• Discharge Electrodes (Metal x 1, Plastic x 1)
• 2-Core Cable for testing ignition coils WITHOUT module
• 3 Core Cable for testing ignition coils WITH module
• User Manual
