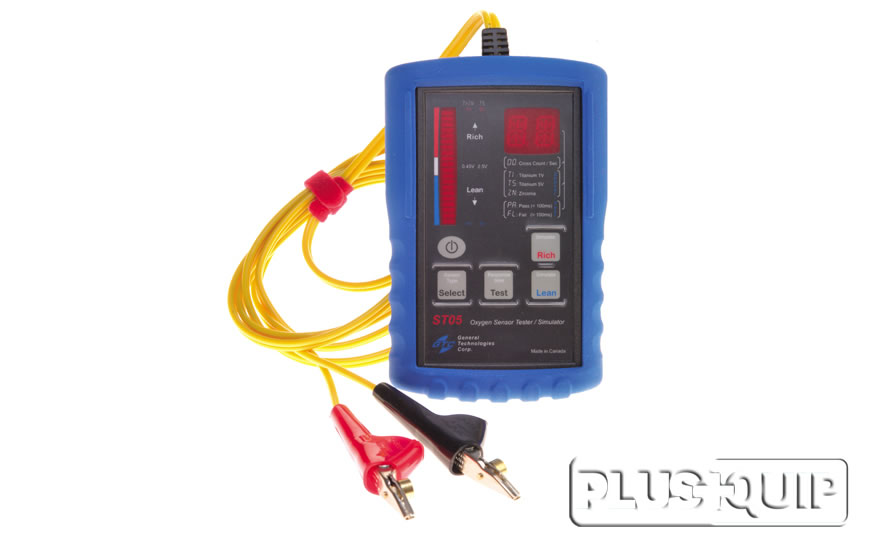

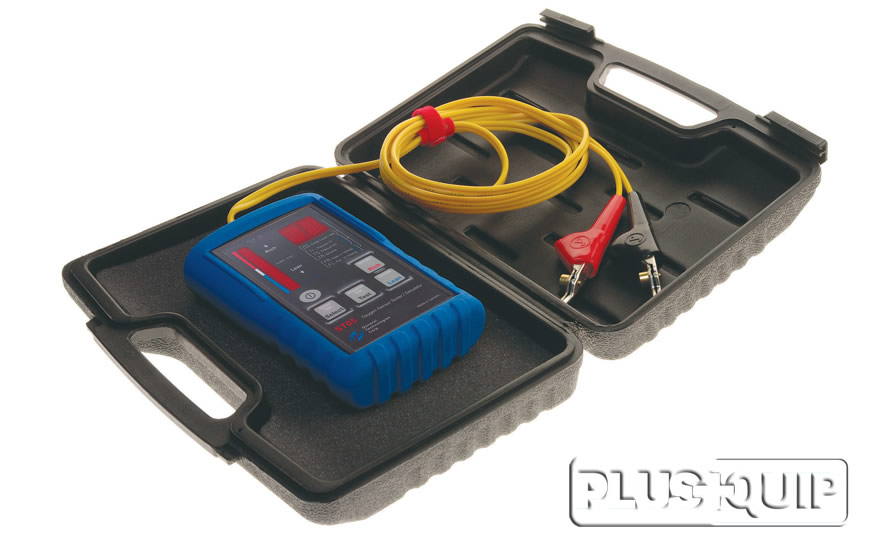

This professional grade oxygen sensor tester uses advanced electronic technology to allow technicians to run response time tests on oxygen sensors.
Suitable for:
Kit includes:
Dimensions
Length: 260 mm
Width: 200 mm
Height: 70 mm
Weight: 0.8 kg
Input Range: | 0 to 5 Volt |
Input Protection: | +/- 48 VDC Max, current limited |
Indicators: | 20 Segment bar graph and 2 digits alphanumeric display |
Bargraph Scale: | 0 to 1 Volt or 0 to 5 Volt |
Cross Count: | 0.1 to 10 CPS |
Auto Detection: | Detects reversed polarity, ground, heater and open connection |
Response test: | < 100 ms Pass +/- 5 ms > 100 ms Fail +/- 5 ms |
Test Leads: | 2 wire piercing alligator clips with insulating boot, and 6.5 ft cables |
Power Source: | Standard 9-volt alkaline battery (factory included) |
Battery Life: | Approx. 25 hrs, with low battery indicator and auto power off |
It only requires the connection of two probe clips to the oxygen sensor wires, and the selection of the oxygen sensor type.
The sensor signal output is shown in real time on the bar graph, while a 2 digit alphanumeric display shows the sensor output cross count per second.
By pressing the ‘Test’ button and performing a snap throttle acceleration of the engine, it tests the response time of the sensor and shows a pass or fail result within seconds.
