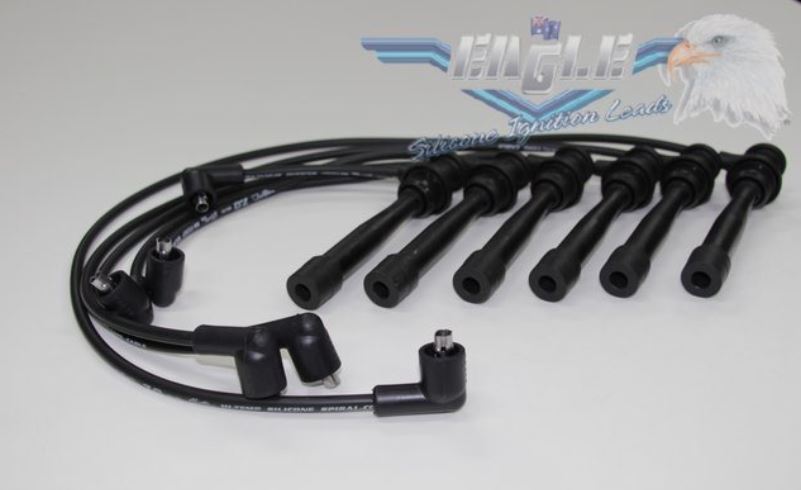

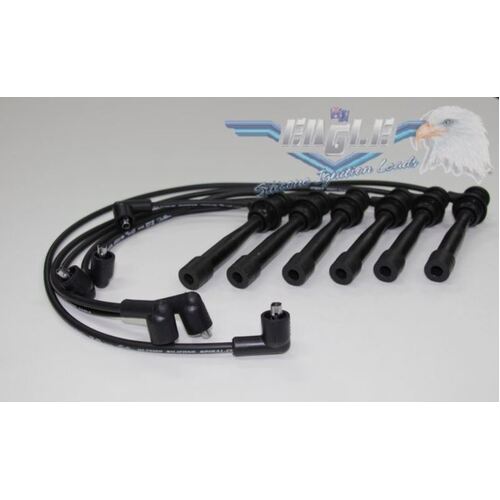

Eagle 7mm Eliminator Ignition Leads Set E76622
SKU: E76622
Eagle 7mm Eliminator Ignition Lead Set — E76622
The Eagle E76622 is a 7mm Eliminator series ignition lead set, specifically designed as an upmarket aftermarket replacement for SOHC and DOHC motors fitted with Boot and Tube component technology.
- Ferrite Spiral Core conductor with 1000 ohms per metre resistance — delivers peak voltage to the plugs for near-complete combustion, quick starts and smooth running
- 260°C high-temperature silicone outer jacket protects against heat and engine bay contaminants
- High dielectric silicone inner jacket for superior insulation
- Stainless steel wound, ferrite coated spiral core for ultra-low resistance
- High-memory spring steel retaining clip for positive terminal locking at all RPM ranges
- Terminals with triple cable retaining ribs and W-shaped crimp for superior cable retention
- PVT insulator tube and silicone tip seal insulates plug terminal to prevent high-voltage crossover
- Quality non-corrosive terminals and boots built to withstand heavy electrical system demands
- Tested to ISO 3808 standards
- 5-year / 60,000km manufacturer warranty (terms and conditions apply)
- Made in Australia
Please note: The packaging design may change over time and is not always representative of the leads in the kit. Some lead kits will be made up from loose leads from our stock and will not come in a box or packaging. Specifications may vary due to technological advances at the manufacturer's discretion. The product description is to be used as a guide only — it is the purchaser's responsibility to confirm correct suitability and application for their individual requirements.
Specifications
| Lead Diameter | 7mm |
|---|---|
| Colour | Black only |
| Application | European Passenger Vehicles |
| Description | A premium quality Copper Core ignition lead set with Resistors and designed to be an aftermarket replacement for European vehicles fitted with this type of technology. |
| Cable Standards | Tested to ISO 3808 standards. |
| Features | 3 ± 1 OHMS resistance per metre (approx) 24 strands of 0.20 (24 / 0.20) Nickel Coated Copper conductor 260°C silicone on silicone insulating jackets with fibreglass braid 200°C heavy duty silicone spark plug boots fitted with internal resistors (where applicable) Silicone or E.P.D.M. distributor and coil boots fitted with internal resistors (where applicable) |
| Please Note | Above specifications may vary due to technological advances at manufacturer’s discretion. |
| Warning | The product description above is to be used as a guide only. It is up to the purchaser/end user to determine the correct suitability/application of product to suit their individual requirements. Care must be taken when selecting product. |
| SKU | E76622 |
| Model # | E76622 |
| Barcode # | 9331678002203 |
| Brand | Eagle |
| Assembled Length | 0.010m |
| Assembled Height | 0.010m |
| Placement On Vehicle | Engine |
| Lead Colour | Black |
| Lead Thickness | 7mm |
| Leads In Kit | 6 |
| Position On Vehicle | Engine |
| Contains Liquid | No |
Eagle Products is the largest privately owned ignition lead manufacturing company in Australia. Established in 1984.
Eagle has invested heavily in world leading state of the art equipment that puts them in a commanding position to take advantage of future growth, One of their main secrets to quality is that each and every Ignition Lead processed by Eagle Products is individually tested for correct resistance to ensure product performance time after time.
In the pursuit of excellence, Eagle Products utilise Australia's finest race cars and their state of the art engine dyno facilities as product test beds to enable them to produc the very best Ignition Leads possible for today's high technology motor vehicles.
- Manufacturered in Australia from imports components.
- Australian owned and private company
- Eagle leads are used on many of the V8 Supercars and Drag cars in Australia
