Eagle 7mm Eliminator Ignition Leads Set E74487
SKU: E74487

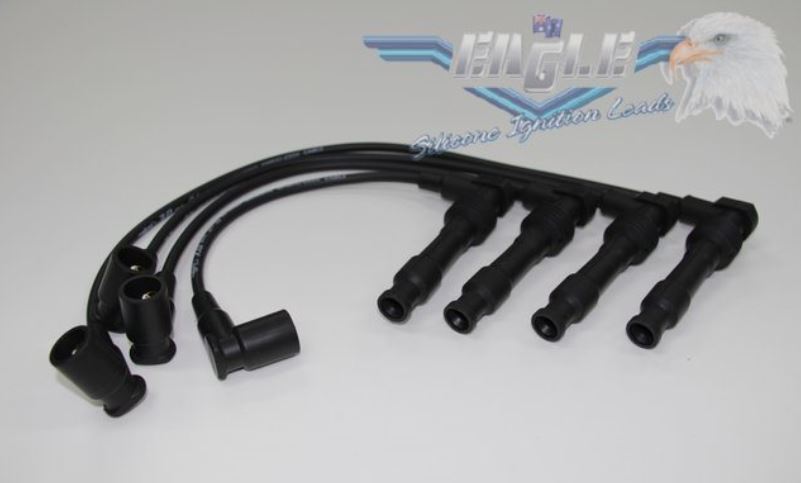

Eagle 7mm Eliminator Ignition Leads Set — E74487
The Eagle E74487 is a premium 7mm Eliminator series ignition lead set, Australian made and specifically designed as an upmarket replacement for SOHC and DOHC engines fitted with Boot and Tube component technology.
- Stainless steel wound, Ferrite coated Spiral Core conductor at 1000 ohms per metre — delivers peak voltage to plugs by induction design for near-complete combustion, super quick starts and smooth running
- High Memory spring steel retaining clip for positive terminal locking at all RPM
- Terminals feature triple cable retaining ribs and W-shaped crimp for superior cable retention
- Non-corrosive terminals and quality boots built to withstand heavy electrical system demands
- High Dielectric Silicone inner jacket for reliable insulation
- 260°C High Temp Silicone outer jacket for protection against heat and engine bay contaminants
- PVT insulator tube and Silicone Tip Seal insulates plug terminal to prevent high voltage crossover
- 5-year / 60,000km manufacturer warranty (terms and conditions apply)
- Made in Australia
Eagle has been a proud sponsor of Australian motor racing since the 1980s. Check the part number against your vehicle's requirements before ordering.
Specifications
| Lead Diameter | 7mm |
|---|---|
| Colour | Black only |
| Application | European Passenger Vehicles |
| Description | A premium quality Copper Core ignition lead set with Resistors and designed to be an aftermarket replacement for European vehicles fitted with this type of technology. |
| Cable Standards | Tested to ISO 3808 standards. |
| Features | 3 ± 1 OHMS resistance per metre (approx) 24 strands of 0.20 (24 / 0.20) Nickel Coated Copper conductor 260°C silicone on silicone insulating jackets with fibreglass braid 200°C heavy duty silicone spark plug boots fitted with internal resistors (where applicable) Silicone or E.P.D.M. distributor and coil boots fitted with internal resistors (where applicable) |
| Please Note | Above specifications may vary due to technological advances at manufacturer’s discretion. |
| Warning | The product description above is to be used as a guide only. It is up to the purchaser/end user to determine the correct suitability/application of product to suit their individual requirements. Care must be taken when selecting product. |
| SKU | E74487 |
| Model # | E74487 |
| Barcode # | 9331678030121 |
| Brand | Eagle |
| Assembled Length | 0.010m |
| Assembled Height | 0.010m |
| Placement On Vehicle | Engine |
| Lead Colour | Black |
| Lead Thickness | 7mm |
| Leads In Kit | 4 |
| Interchange Part Number | E74487 |
| Industry Standard Number | E74487 |
| Position On Vehicle | Engine |
| Industry Standard Part Code | E74487 |
| Contains Liquid | No |
Eagle Products is the largest privately owned ignition lead manufacturing company in Australia. Established in 1984.
Eagle has invested heavily in world leading state of the art equipment that puts them in a commanding position to take advantage of future growth, One of their main secrets to quality is that each and every Ignition Lead processed by Eagle Products is individually tested for correct resistance to ensure product performance time after time.
In the pursuit of excellence, Eagle Products utilise Australia's finest race cars and their state of the art engine dyno facilities as product test beds to enable them to produc the very best Ignition Leads possible for today's high technology motor vehicles.
- Manufacturered in Australia from imports components.
- Australian owned and private company
- Eagle leads are used on many of the V8 Supercars and Drag cars in Australia
Packaging: Manufacturers periodically update their packaging and labelling. You may receive the current or a previous design — the product, formulation and part number are unchanged.
Fitment (vehicle-specific products): For products listed to suit a specific vehicle, our fitment data is kept as accurate as possible, but vehicle catalogues are not perfect. Some models had more than one part fitted depending on build date, engine, or component size/variant. It is the buyer's responsibility to confirm the part suits their vehicle before purchasing. If you have any doubt, please message us with your vehicle's registration number and state (preferred), or full VIN/build details, and we'll do our best to confirm before you buy.
