Eagle 7mm Eliminator Ignition Leads Set E74456
SKU: E74456
Eagle 7mm Eliminator Ignition Leads Set
The Eagle E74456 is a 7mm Eliminator series ignition lead set, designed as a premium aftermarket replacement for compatible European passenger vehicles.
- Ferrite Spiral Core conductor with 1000 ohms per metre resistance — delivers peak voltage to plugs for reliable starts and smooth running
- 24 strands of 0.20mm nickel-coated copper conductor (24/0.20)
- 260°C high-temperature silicone outer jacket with fibreglass braid — resists heat and engine bay contaminants
- High dielectric silicone inner jacket for superior insulation

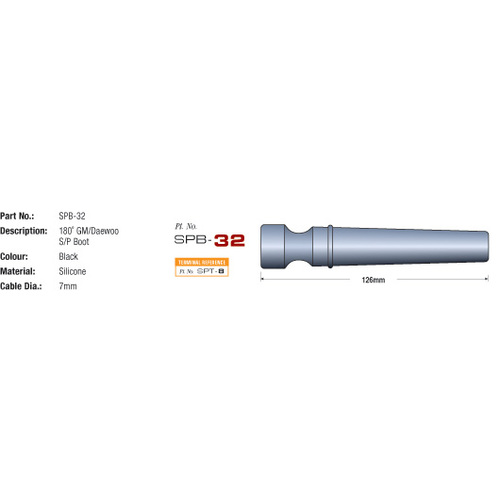

- 200°C heavy-duty silicone spark plug boots fitted with internal resistors (where applicable)
- Silicone or EPDM distributor and coil boots fitted with internal resistors (where applicable)
- Non-corrosive terminals with triple cable retaining ribs and W-shaped crimp for superior cable retention
- High-memory spring steel retaining clip for positive terminal locking at all RPM ranges
- PVT insulator tube and silicone tip seal to prevent high-voltage crossover
- Tested to ISO 3808 standards
- 5-year / 60,000km manufacturer warranty (terms and conditions apply)
- Made in Australia
Note: The picture of the box is for illustration purposes only — the design of the packaging may change over time and may not always be representative of the leads in the kit. Some lead kits will be made up from loose leads from stock and will not come in a box or packaging.
Above specifications may vary due to technological advances at the manufacturer's discretion. This product description is to be used as a guide only — it is the responsibility of the purchaser to confirm correct suitability for their application before ordering.
Specifications
| Lead Diameter | 7mm |
|---|---|
| Colour | Black only |
| Application | European Passenger Vehicles |
| Description | A premium quality Copper Core ignition lead set with Resistors and designed to be an aftermarket replacement for European vehicles fitted with this type of technology. |
| Cable Standards | Tested to ISO 3808 standards. |
| Features | 3 ± 1 OHMS resistance per metre (approx) 24 strands of 0.20 (24 / 0.20) Nickel Coated Copper conductor 260°C silicone on silicone insulating jackets with fibreglass braid 200°C heavy duty silicone spark plug boots fitted with internal resistors (where applicable) Silicone or E.P.D.M. distributor and coil boots fitted with internal resistors (where applicable) |
| Please Note | Above specifications may vary due to technological advances at manufacturer’s discretion. |
| Warning | The product description above is to be used as a guide only. It is up to the purchaser/end user to determine the correct suitability/application of product to suit their individual requirements. Care must be taken when selecting product. |
| SKU | E74456 |
| Model # | E74456 |
| Barcode # | 9331678012080 |
| Brand | Eagle |
| Assembled Length | 0.010m |
| Assembled Height | 0.010m |
| Placement On Vehicle | Engine |
| Lead Colour | Black |
| Lead Thickness | 7mm |
| Leads In Kit | 5 |
| Manufacturer Part Number | E74456 |
| Position On Vehicle | Engine |
| Contains Liquid | No |
