Name: Eagle 5mm Eliminator Ignition Leads E54567
Brand: Eagle
SKU: E54567
Availability: InStock

Note: Picture of the box is for illustration purposes only, the design of the packaging may change over time and is not always representive of the leads in the kit. Some lead kits will be made up from loose leads from our stock, and will not come in a box or packaging.

STAINLESS STEEL FERRITE SPIRAL CORE
	Premium quality upmarket replacement lead set for vehicle’s having SOHC & DOHC motors fitted with Boot & Tube technology.
Lead Diameter	5mm
Colour	Black only
Application	Most passenger, Commercial & 4WD vehicles fitted with SOHC & DOHC motors.
Description	A premium quality ignition lead set specifically designed as an upmarket replacement for SOHC and DOHC motors fitted with Boot and Tube component technology. Being Eliminator series, they are fitted with our 1300 ohms per metre Ferrite Spiral Core conductor which by induction design delivers peak voltage to the plugs ensuring almost complete combustion for super quick starts and smooth running.
Cable Standards	Tested to ISO 3808 Standards.

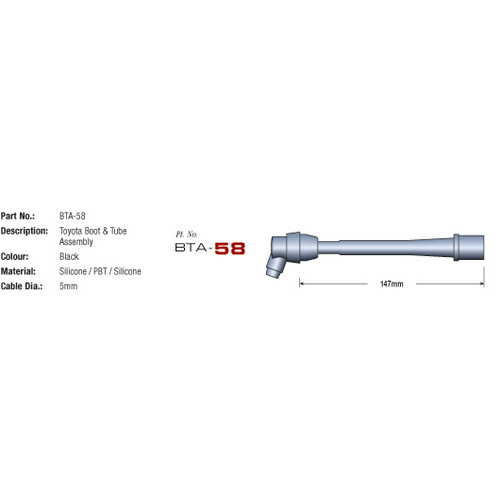

Features	Boot & Tube Assembly Features* Hi-temp Silicone Well Cover boot PVT insulator tube insulates plug terminal to prevent high voltage crossover Hi-temp Silicone Tip Seal. Terminal Features High Memory spring steel retaining clip for positive terminal locking at all RPM'S. Extra long .51mm base offers minimal heat transfer from plug tip to inner conductor. This ensures maximum cable life. Triple cable retaining ribs and “W” shaped crimp ensure superior cable retention. Cable Features Simply “the best” Stainless Steel wound Ferrite coated Spiral Core conductor yields ultra low resistance ensuring peak voltage delivery to the spark plugs. High Dielectric Silicone inner jacket. Technologically advanced nylon tape adds tensile strength. 260°C High Temp. modified Silicone outer jacket ensures complete protection against heat and engine bay contaminants.
Please Note	Above specifications may vary due to technological advances at manufacturer’s discretion.
Warning	The product description above is to be used as a guide only. It is up to the purchaser/end user to determine the correct suitability/application of product to suit their individual requirements. Care must be taken when selecting product. For Warranty information on above lead sets, refer to back cover.
	* Not required on certain vehicles.

SKU	E54567
Model #	E54567
Barcode #	9331678010888
Brand	Eagle
Assembled Length	0.010m
Assembled Height	0.010m
Lead Colour	Black
Lead Thickness	5mm
Leads In Kit	4
Universal Fitment	No
Contains Liquid	No

Eagle Products is the largest privately owned ignition lead manufacturing company in Australia. Established in 1984.

Eagle has invested heavily in world leading state of the art equipment that puts them in a commanding position to take advantage of future growth, One of their main secrets to quality is that each and every Ignition Lead processed by Eagle Products is individually tested for correct resistance to ensure product performance time after time.

In the pursuit of excellence, Eagle Products utilise Australia's finest race cars and their state of the art engine dyno facilities as product test beds to enable them to produc the very best Ignition Leads possible for today's high technology motor vehicles.
