Eagle 5mm Eliminator Ignition Leads E54495
SKU: E54495

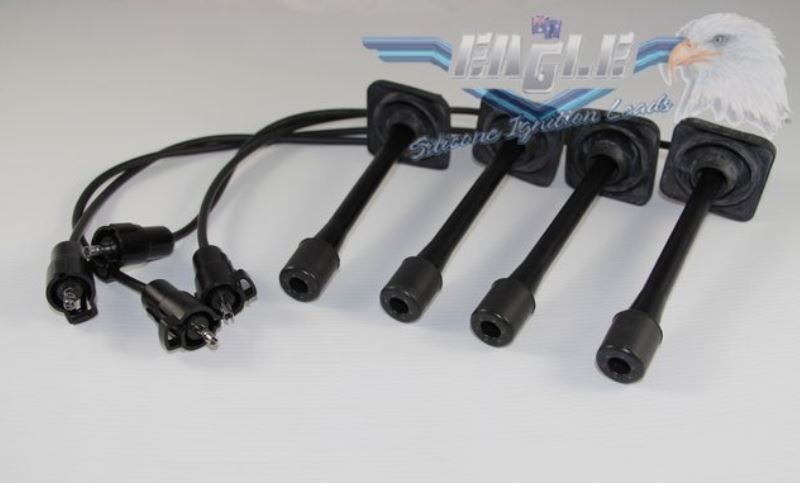

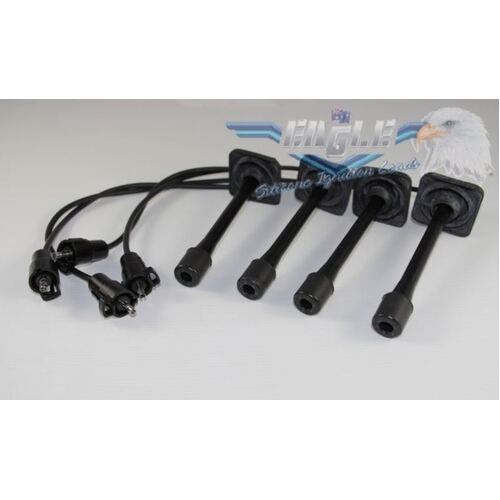

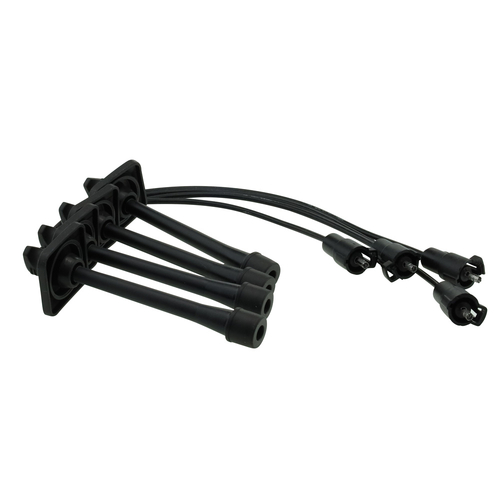

Eagle 5mm Eliminator Ignition Lead Set — E54495
The Eagle E54495 is a 5mm Eliminator series ignition lead set, specifically designed as an upmarket replacement for SOHC and DOHC motors fitted with Boot and Tube component technology.
- Stainless steel wound, ferrite-coated spiral core conductor — ultra-low resistance for peak voltage delivery to the spark plugs
- Tested to ISO 3808 standards
- High memory spring steel retaining clip for positive terminal locking at all RPMs
- Triple cable retaining ribs and "W" shaped crimp ensure superior cable retention
- Hi-temp silicone well cover boot and silicone tip seal
- PVT insulator tube insulates plug terminal to prevent high voltage crossover
- High dielectric silicone inner jacket with technologically advanced nylon tape for tensile strength
- 260°C high-temp modified silicone outer jacket — protection against heat and engine bay contaminants
- 5-year / 60,000 km manufacturer warranty
- Made in Australia

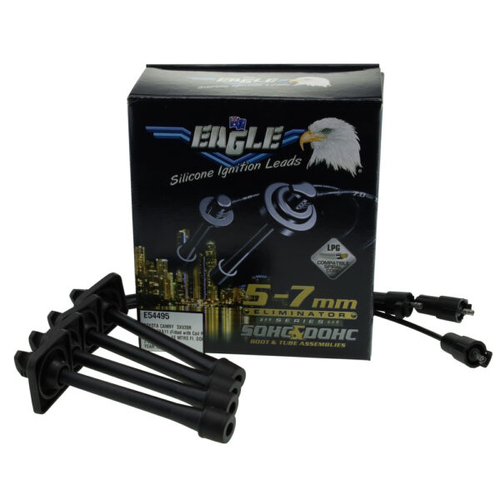

Note: The picture of the box is for illustration purposes only — packaging design may change over time and may not always be representative of the leads in the kit. Some lead kits are made up from loose leads from stock and will not come in a box or packaging.
Above specifications may vary due to technological advances at the manufacturer's discretion. This product description is to be used as a guide only — it is the purchaser's responsibility to confirm correct suitability and application for their individual requirements.
Specifications
| Lead Diameter | 5mm |
|---|---|
| Colour | Black only |
| Application | Most passenger, Commercial & 4WD vehicles fitted with SOHC & DOHC motors. |
| Description | A premium quality ignition lead set specifically designed as an upmarket replacement for SOHC and DOHC motors fitted with Boot and Tube component technology.Being Eliminator series, they are fitted with our 1300 ohms per metre Ferrite Spiral Core conductor which by induction design delivers peak voltage to the plugs ensuring almost complete combustion for super quick starts and smooth running. |
| Cable Standards | Tested to ISO 3808 Standards. |

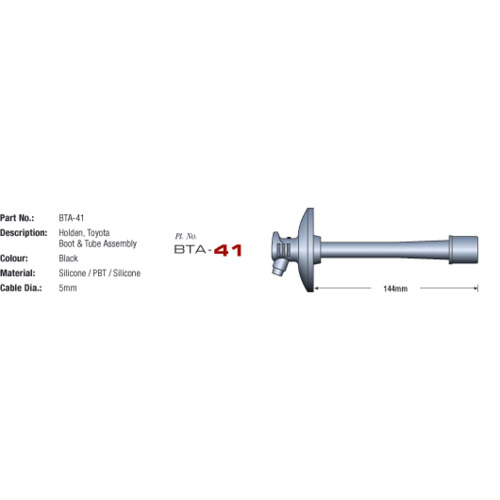

| Features | Boot & Tube Assembly Features*Hi-temp Silicone Well Cover bootPVT insulator tube insulates plug terminal to prevent high voltage crossoverHi-temp Silicone Tip Seal.Terminal FeaturesHigh Memory spring steel retaining clip for positive terminal locking at all RPM'S.Extra long.51mm base offers minimal heat transfer from plug tip to inner conductor. This ensures maximum cable life.Triple cable retaining ribs and “W” shaped crimp ensure superior cable retention.Cable FeaturesSimply “the best” Stainless Steel wound Ferrite coated Spiral Core conductor yields ultra low resistance ensuring peak voltage delivery to the spark plugs.High Dielectric Silicone inner jacket.Technologically advanced nylon tape adds tensile strength.260°C High Temp. modified Silicone outer jacket ensures complete protection against heat and engine bay contaminants. |
| Please Note | Above specifications may vary due to technological advances at manufacturer’s discretion. |
| Warning | The product description above is to be used as a guide only. It is up to the purchaser/end user to determine the correct suitability/application of product to suit their individual requirements. Care must be taken when selecting product. For Warranty information on above lead sets, refer to back cover. |
| SKU | E54495 |
| Model # | E54495 |
| Barcode # | 9331678010864 |
| Brand | Eagle |
| Assembled Length | 0.010m |
| Assembled Height | 0.010m |
| Placement On Vehicle | Engine |
| Lead Colour | Black |
| Lead Thickness | 5mm |
| Leads In Kit | 4 |
| Interchange Part Number | E54495 |
| Manufacturer Part Number | E54495 |
| Industry Standard Number | E54495 |
| Position On Vehicle | Engine |
| Industry Standard Part Code | E54495 |
| Contains Liquid | No |
Eagle Products is the largest privately owned ignition lead manufacturing company in Australia. Established in 1984.
Eagle has invested heavily in world leading state of the art equipment that puts them in a commanding position to take advantage of future growth, One of their main secrets to quality is that each and every Ignition Lead processed by Eagle Products is individually tested for correct resistance to ensure product performance time after time.
In the pursuit of excellence, Eagle Products utilise Australia's finest race cars and their state of the art engine dyno facilities as product test beds to enable them to produc the very best Ignition Leads possible for today's high technology motor vehicles.
- Manufacturered in Australia from imports components.
- Australian owned and private company
- Eagle leads are used on many of the V8 Supercars and Drag cars in Australia
