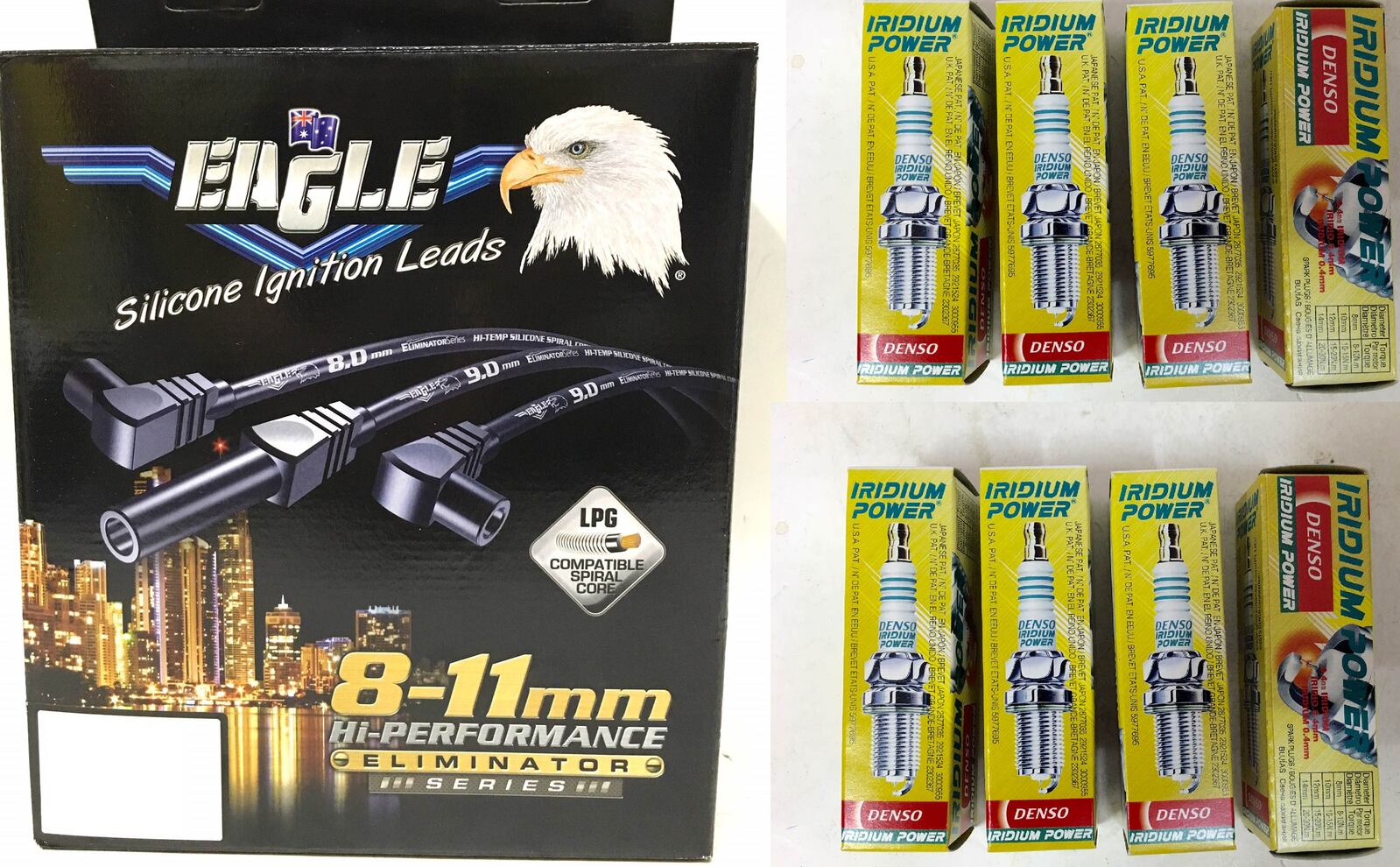

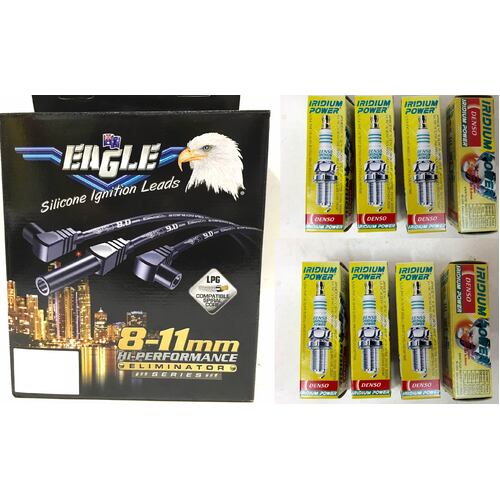

Note: Picture of the box is for illustration purposes only, the design of the packaging may change over time and is not always representive of the leads in the kit. Some lead kits will be made up from loose leads from our stock, and will not come in a box or packaging.

COPPER FERRITE SPIRAL CORE
	The next generation in street/strip ignition lead technology!
Lead Diameter	10.5mm
Colour	Blue, Black & Red
Application	High Performance Street /Strip vehicles but primarily designed for racing applications burning Hi-octane and Methanol fuels.
Ignition System Compatibility	Very high output aftermarket ignition systems including most Craneª & MSDª types. Note: We recommend consulting with your ignition manufacturer for system compatibility before using this product.
Description	Eliminator Series II ignition leads have been specifically designed to cope with todayÕs high compression high horsepower race engines. Being fitted with three layers of Silicone jackets, they are a proven performer at carrying secondary voltages in excess of 70,000 volts whilst emitting virtually zero RFI making them compatable for use with virtually all hi-tech on board computer systems.
Cable Standards	Tested to ISO 3808 Standards.
Features	Eagle's Finger Grip SPB Features Eagles computer designed “finger grip” Spark Plug Boot allows easy on Ð easy off installation. Unequalled durability by using our best High Temp Silicone compounds. Terminal Features Zero rust 0.43mm Stainless Steel Base. High Memory spring steel retaining clip for positive terminal locking at all RPM'S. Triple cable retaining ribs and “W” shaped crimp ensure superior cable retention. Cable Features Ultra low 325 ohms per metre resistance Spiral wound. Stain Steel over Ferrite coated Kevlarª inner core. Nylon Tape gives exceptional tensile and terminal pull off strength. Three 260¡ C Hi-temp Silicone jackets for superior insulating properties.
Please Note	Above specifications may vary due to technological advances at manufacturerÕs discretion.
Warning	The product description above is to be used as a guide only. It is up to the purchaser/end user to determine the correct suitability/application of product to suit their individual requirements. Care must be taken when selecting product. For Warranty information on above Leadss, refer to back cover.
	Kevlar¨ is a registered trademark of DuPontª

SKU	E1058766R-2-IT16TT
Barcode #	9331678083684
Brand	Eagle & Denso
Assembled Length	0.010m
Assembled Height	0.010m
Lead Colour	Red
Lead Thickness	10.5mm
Leads In Kit	8
Universal Fitment	No
