Davies Craig Universal Nylon Inline Temperature Sensor Adapter Kit (35mm) - 0409

This simple, economical 35mm adapter kit allows easy fitting directly into the top radiator hose. It is intended as an accessory for Davies Craig Thermatic switches with part numbers #0400, #0401, #0404, #0444 and #0445.

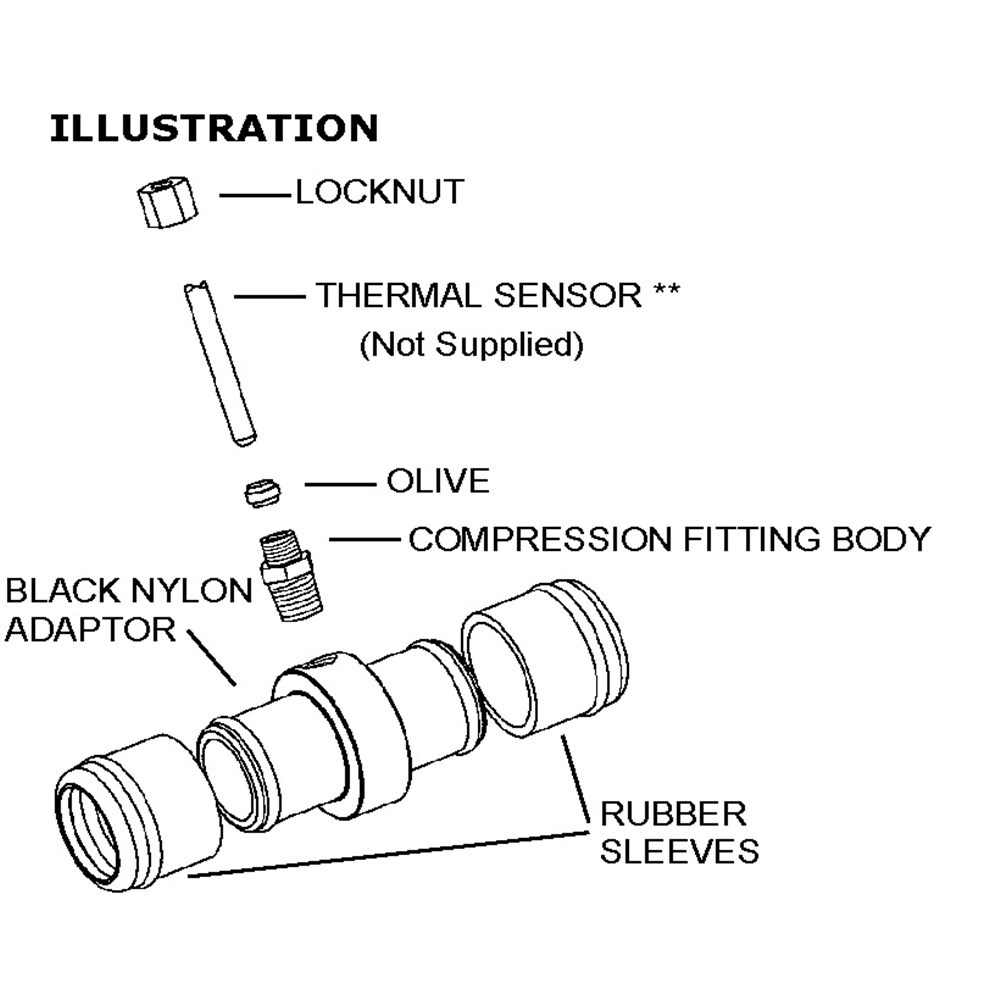

• Fit the probe into the compression fitting
• Remove about 17mm (2/3”) of radiator hose
• Fit the adaptor between each hose and secure the hose clamps
• The kit comes complete for a watertight and effective probe installation
• Extra rubber sleeves are supplied to enable fitment to radiator hose sizes from 32mm to 40mm (1.25"-1.50") diameter
• Suits all temperature sensors with either a 5mm (3/16") or a 6mm (1/4" outside diameter and temperature gauge senders with 6mm (1/4") NPT thread
• Two 1/4" NPT holes allow the fitment of a sensor and or air bleed. Should you only need one hole, a bung is included.

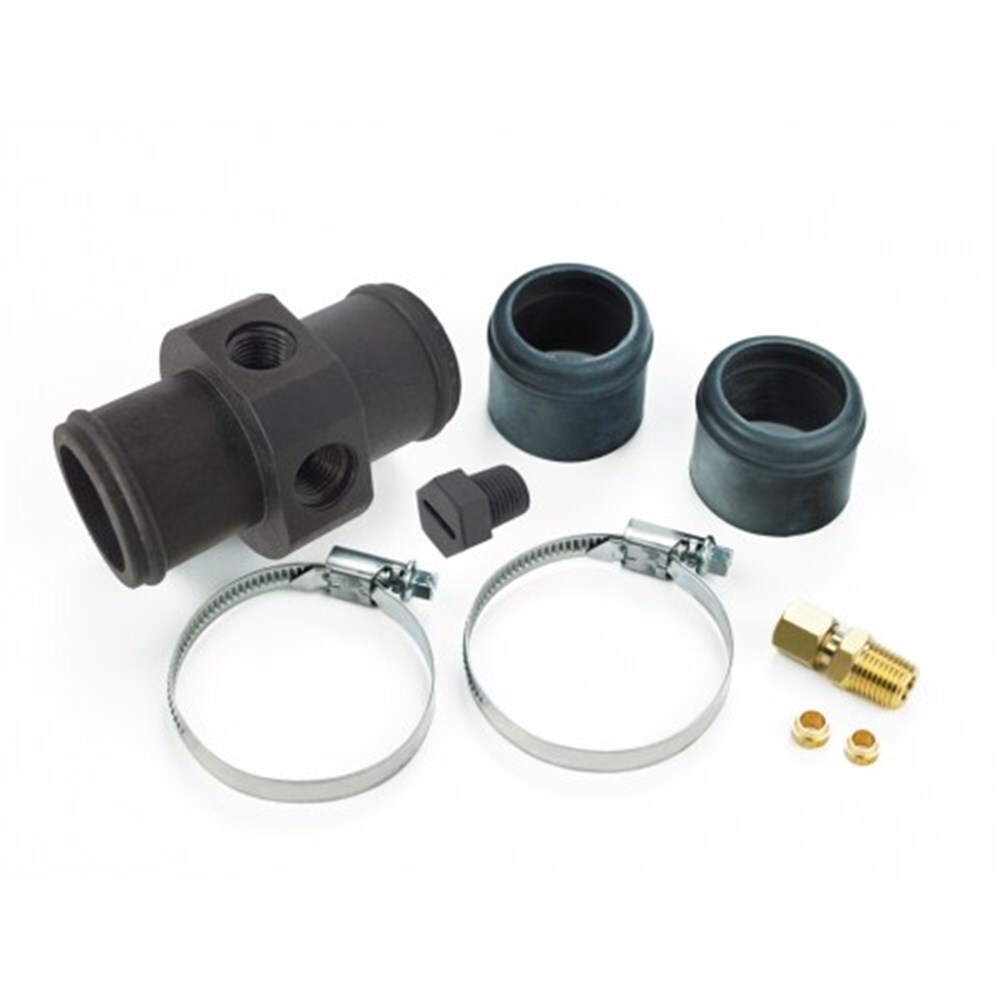

Kit includes:

• 35mm adaptor
• 3mm electric water pump sleeve adaptors
• 5 and 6mm olives
<>Compression fitting for 6.35 mm sensor

Hose clamps and instructions are also included.

This product comes with a warranty period of 12 months.
