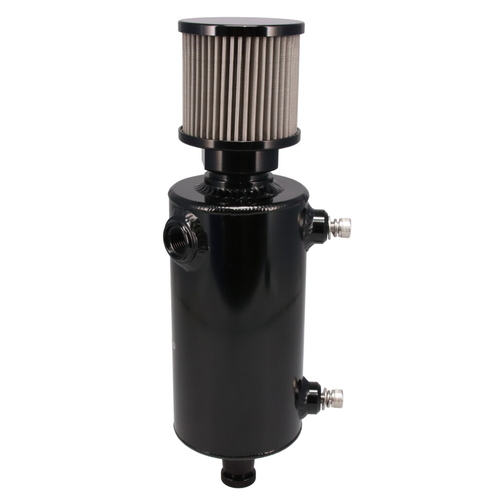

Raceworks Oil Catch Can Round 1.0L Twin with External Breather ALY-245BK
SKU: ALY-245BK
Raceworks 1.0L Round Oil Catch Can with External Breather
The Raceworks ALY-245BK is a 1.0L round baffled oil catch can featuring twin AN-8 ORB inlet ports and an external breather, designed for performance and motorsport applications requiring efficient crankcase ventilation.
- Tank capacity: 1.0L (usable volume: 0.8L)
- 2 x AN-8 ORB inlet ports, AN-10 drain with tap, AN-20 breather — baffled internals

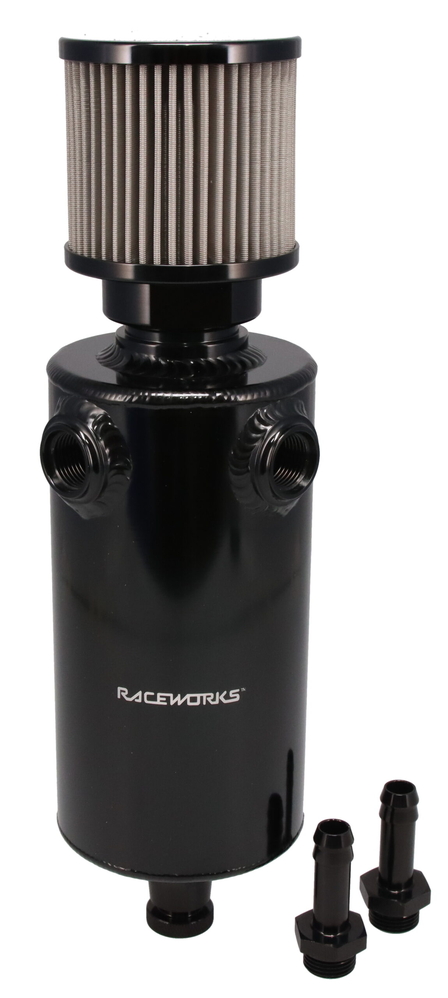

- Includes twin 1/2" barb adapters
- Tank body diameter: 90mm; tank body height: 175mm; overall height including breather and drain tap: 316mm
- Twin M8 x 1.25 bosses on the rear for secure vehicle mounting
- Mounting hardware included
- Black finish
For AN-10 breather line applications, use of RWF-920-10-08SS thin wall stainless steel fittings is recommended. A reliable solution for separating oil vapour from crankcase blow-by gases before they re-enter the intake system.
| SKU | ALY-245BK |
| Model # | ALY-245BK |
| Barcode # | 9341554201712 |
| Brand | Raceworks |
| Colour | Black |
| Manufacturer Part Number | ALY-245BK |
| Contains Liquid | No |
| Height including breather and drain tap | 316mm |
| Height of tank body | 175mm |
| Tank Body Diameter | 90mm |
