Eagle 8mm Heavy Duty Ignition Lead Kit - Holden Jackaroo & Rodeo
SKU: 84210HD

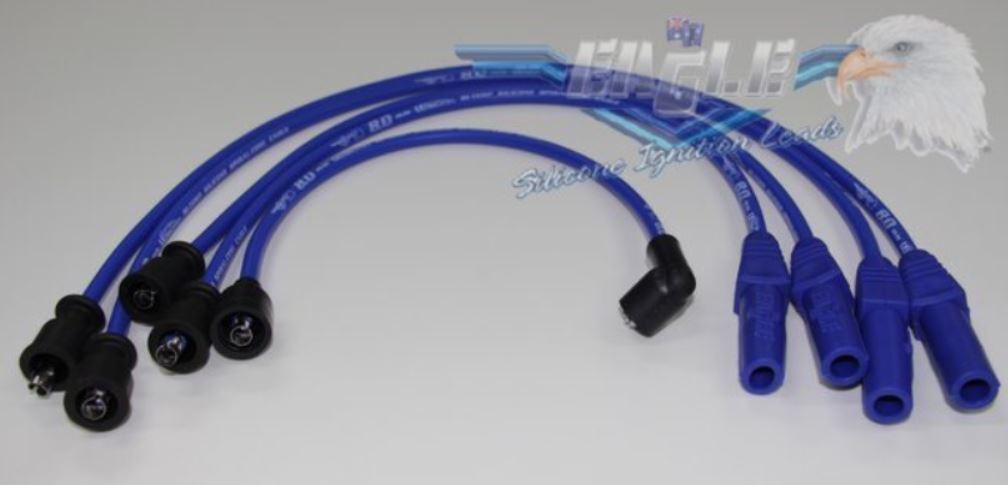

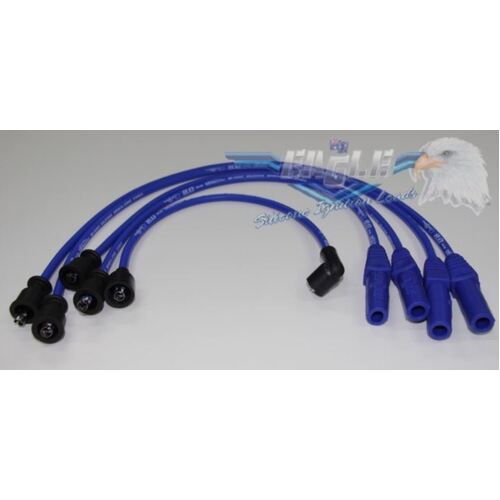

Eagle 8mm Heavy Duty Ignition Lead Kit
The Eagle 84210HD is an 8mm heavy duty ignition lead kit designed to handle the higher heat conditions prevalent in most late model passenger, commercial and 4WD vehicles. Made in Australia using quality components, these leads are engineered for Australian conditions.
- Stainless Steel Spiral Wound Conductor: 2,100 (±500) ohms resistance per metre for reliable power transfer
- High Temperature Silicone Jackets: silicone-on-silicone insulating jackets rated to over 260°C, reinforced with nylon tape for added tensile strength
- Precision Engineered Terminals: 0.43mm stainless steel terminal base with triple cable retaining ribs for superior cable retention
- Positive Terminal Locking: high memory spring steel retaining clip maintains a secure connection at all RPM levels
- Computer Aided Boot Design: faithfully replicates the terminal's contours to eliminate any chance of crossfire
- Finger Grip Boot Design: ensures easy fitment and removal of the spark plug boot where applicable
- Tested to ISO 3808 Standards
- Colour: Blue
- Lead Diameter: 8mm
Specifications may vary slightly due to ongoing product improvements at the manufacturer's discretion. Use the vehicle compatibility list to confirm this lead kit suits your vehicle before ordering.
Please Note: The picture of the box is for illustration purposes only — the design of the packaging may change over time and is not always representative of the leads in the kit. Some lead kits will be made up from loose leads from our stock and will not come in a box or packaging.
Specifications
| Lead Diameter | 8mm |
|---|---|
| Colour | Blue only |
| Application | Most passenger, commercial & 4WD vehicles |
| Description | A heavy duty set of ignition leads primarily designed to handle higher heat conditions prevalent in most late model passenger, commercial and 4WD vehicles. |
| Cable Standards | Tested to ISO 3808 Standards. |
| Features | Boot Features“Finger Grip” Design ensures easy fitment and removal of Spark Plug Boot. (Where applicable)Computer Aided Internal Boot Design allows the terminal's contours to be faithfully reproduced eliminating any chance of crossfire.Unequaled durability by utilising High Temp. modified Silicone compounds.Terminal FeaturesHigh memory spring steel retaining clip designed for positive terminal locking at all RPM's.Precision engineered 0.43mm Stainless Steel Base.Extra long base ensures minimal heat transfer from spark plug tip to inner cable core. This ensures maximum cable life.Triple cable retaining ribs for superior cable retention.Cable Features2,100±500 OHMS resistance per metre.Stainless steel spiral wound conductor.Technologically advanced nylon tape adds tensile strength.>260° silicone on silicone insulating jackets. |
| Please Note | Above specifications may vary due to technological advances at manufacturer’s discretion. |
| Warning | The product description above is to be used as a guide only. It is up to the purchaser/end user to determine the correct suitability/application of product to suit their individual requirements. Care must be taken when selecting product. For Warranty information on above Leadss, refer to back cover. |
| SKU | 84210HD |
| Barcode # | 9331678021617 |
| Brand | Eagle |
| Assembled Length | 0.010m |
| Assembled Height | 0.010m |
| Placement On Vehicle | Engine |
| Lead Colour | Blue |
| Lead Thickness | 8mm |
| Leads In Kit | 5 |
| Type | Ignition Wire Set |
| Reference OE/OEM Number | 84210HD |
| Manufacturer Part Number | 84210HD |
| Position On Vehicle | Engine |
| Contains Liquid | No |
Eagle Products is the largest privately owned ignition lead manufacturing company in Australia. Established in 1984.
Eagle has invested heavily in world leading state of the art equipment that puts them in a commanding position to take advantage of future growth, One of their main secrets to quality is that each and every Ignition Lead processed by Eagle Products is individually tested for correct resistance to ensure product performance time after time.
In the pursuit of excellence, Eagle Products utilise Australia's finest race cars and their state of the art engine dyno facilities as product test beds to enable them to produc the very best Ignition Leads possible for today's high technology motor vehicles.
- Manufacturered in Australia from imports components.
- Australian owned and private company
- Eagle leads are used on many of the V8 Supercars and Drag cars in Australia
Packaging: Manufacturers periodically update their packaging and labelling. You may receive the current or a previous design — the product, formulation and part number are unchanged.
Fitment (vehicle-specific products): For products listed to suit a specific vehicle, our fitment data is kept as accurate as possible, but vehicle catalogues are not perfect. Some models had more than one part fitted depending on build date, engine, or component size/variant. It is the buyer's responsibility to confirm the part suits their vehicle before purchasing. If you have any doubt, please message us with your vehicle's registration number and state (preferred), or full VIN/build details, and we'll do our best to confirm before you buy.
