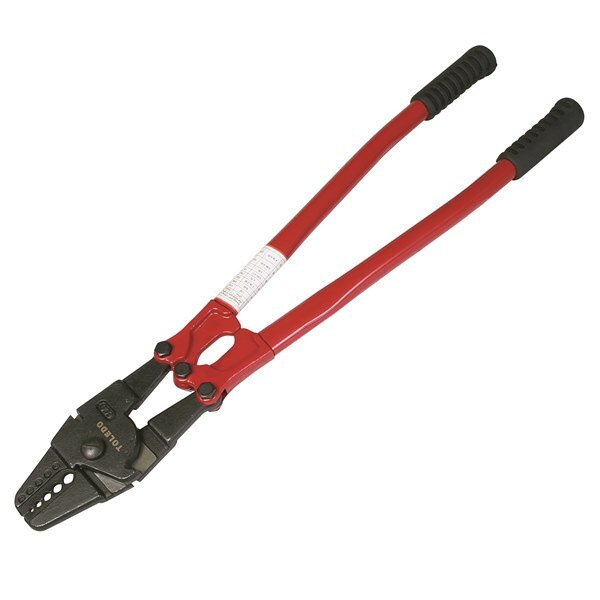

Features swaging jaws, cutter and crimper head design to enable complete crimp and cut operation
Robust metal construction with chrome vanadium steel jaws
Suitable for copper or aluminium sleeves
Overall length: 600mm
Capacity: 1.58-5mm
Head: 5 hole
Specifications ►Hole 1 - 1.58mm 1/16” , 2.00mm 5/64”

►Hole 2 - 2.38mm 3/32” , 2.78mm 7/64”

►Hole 3 - 3.00mm 1/8” , 3.50mm 9/64”

►Hole 4 - 4.00mm 5/32”

►Hole 5 - 5.00mm 3/16”
  • For swaging copper or aluminium sleeves on to wire cables
  • Features swaging jaws, cutter and crimper head design to enable complete crimp and cut operation
  • Suitable for use on swaging sleeves up to 5mm (3/16”)
  • Robust metal construction with chrome vanadium steel jaws
  • Overall length: 600mm
SKU 316008
Model # 316008
Barcode # 9300784036631
Brand Toledo
Interchange Part Number 316008
Industry Standard Part Code 316008
Contains Liquid No
